bbTreeGen

BB (branch-and-Bound) tree generation for nearest neighbor search

Contents

Syntax

Description

bbTree=bbTreeGen(data, clusterNum, levelNum) returns a BB (branch and bound) tree for efficient search of nearest neighbors, where

• data: Data matrix with each column being an observation vector
• clusterNum: No. of clusters (or children) for each node
• levelNum: No. of level of the BB tree
• bbTree: the returned BB tree with the following fields:
  • bbTree(i).mean: mean vector of a tree node i
  • bbTree(i).radius: radius vector of a tree node i
  • bbTree(i).child: indices of children for a non-terminal node i
  • bbTree(i).dataIndex: indices of data for a terminal node i
  • bbTree(i).dist2mean: distance to mean of a terminal node i

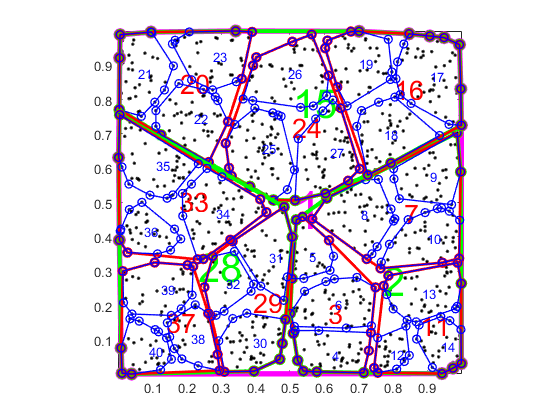

Example

data=rand(2,1000);
clusterNum=3;
level=4;
plotOpt=1;
bbTree=bbTreeGen(data, clusterNum, level, plotOpt);

See Also

bbTreeSearch.
