imFeaLbp

Local binary pattern for images

Contents

Syntax

Description

patchHist = imFeaLbp(im, opt, showPlot) returns the aggregated patch histogram of LBP (local binary patterns)

• im: Given image
• opt: Options for LBP computation
  • opt.patchSideCount: The whole image is divided into patchSideCount(1)-by-patchSideCount(2) sub images
  • opt.weight: Weight for creating the LBP
• showPlot: 1 for plotting the results

[patchHist, lbpIm] = imFeaLbp(...) returns the LBP image as well.

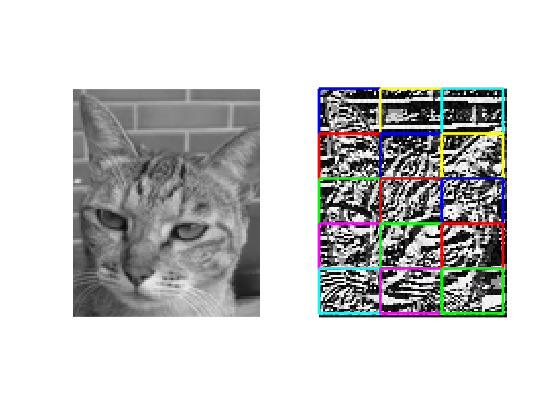

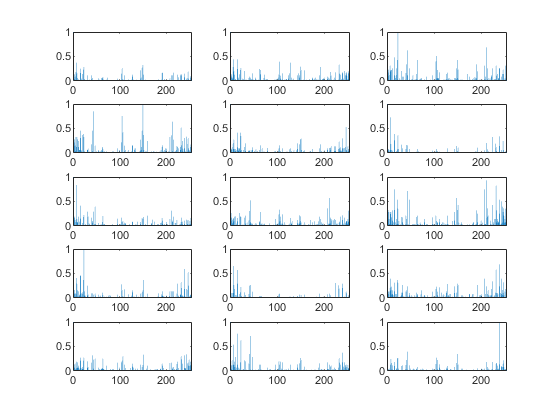

Example

im=imread('catPangPang.png');
opt=imFeaLbp('defaultOpt');
opt.patchSideCount=[5 3];
[patchHist, lbpIm]=imFeaLbp(im, opt, 1);

Published with MATLAB® R2018a
