gaussianM

Multi-dimensional Gaussian propability density function

Contents

Syntax

Description

out=gaussian(data, gPrm) return the probability of given data over Gaussian PDF with parameter gPrm.

Example

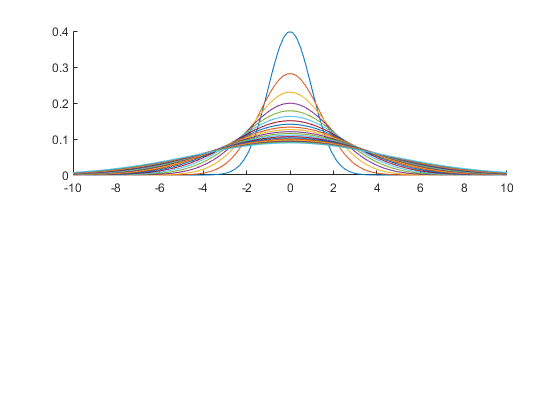

Plot 1-D Gaussians

x=linspace(-10, 10);
subplot(2,1,1);
gPrm.mu=0;
hold on
for i=1:20
	gPrm.sigma=i;
	y=gaussian(x, gPrm);
	plot(x,y);
end
hold off;

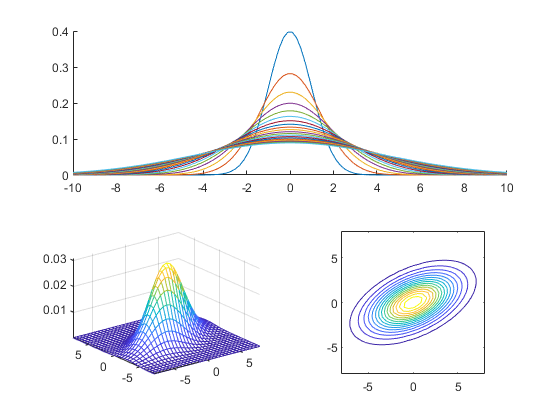

Plot 2-D Gaussians

gPrm.mu=[0; 0];
gPrm.sigma=[9 3; 3, 4];
bound=8;
pointNum=31;
x = linspace(-bound, bound, pointNum);
y = linspace(-bound, bound, pointNum);
[xx, yy] = meshgrid(x, y);
data = [xx(:), yy(:)]';
out = gaussian(data, gPrm);
zz = reshape(out, pointNum, pointNum);
subplot(2,2,3);
mesh(xx, yy, zz);
axis([-inf inf -inf inf -inf inf]);
subplot(2,2,4);
contour(xx, yy, zz, 15);
axis image;

Check integration

gPrm.mu=1;
gPrm.sigma=2;
area = quad('gaussian', -10, 10, [], [], gPrm);
fprintf('The integration from -10 to 10 for a Gaussian is %g.\n', area);

The integration from -10 to 10 for a Gaussian is 1.

See Also

gaussianLog, gaussianMle.
