wave2mfcc

MFCC (mel-scale frequency cepstral cofficient) extraction from audio signals

Contents

Syntax

Description

mfcc = wave2mfcc(y, fs, opt) returns MFCC (plus their delta value if necessary) from the given audio signal y with sample rate fs.

• y: Audio signals
• fs: Sampling rate
• opt: Options for deriving the MFCC features. You can use mfccOptSet.m to obtain the default options.
• mfcc: Output MFCC features

Example

waveFile='what_movies_have_you_seen_recently.wav';
au=myAudioRead(waveFile);
y=au.signal; fs=au.fs;
opt=mfccOptSet(fs);
opt.useDelta=0;
mfcc0= wave2mfcc(y, fs, opt);
fprintf('No. of extracted frames = %d\n', size(mfcc0, 2));

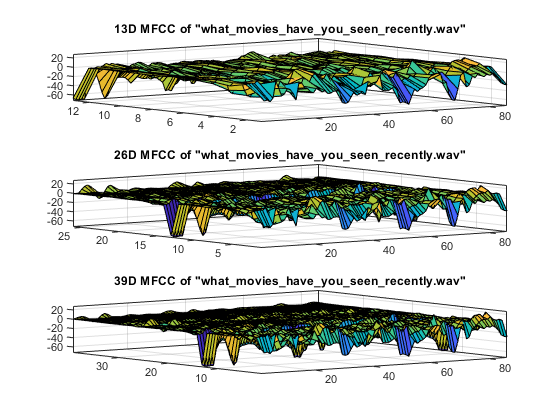

subplot(3,1,1); surf(mfcc0); box on; axis tight; title(strPurify(sprintf('13D MFCC of "%s"', waveFile)));
opt.useDelta=1;
mfcc1=wave2mfcc(y, fs, opt);
subplot(3,1,2); surf(mfcc1); box on; axis tight; title(strPurify(sprintf('26D MFCC of "%s"', waveFile)));
opt.useDelta=2;
mfcc2=wave2mfcc(y, fs, opt);
subplot(3,1,3); surf(mfcc2); box on; axis tight; title(strPurify(sprintf('39D MFCC of "%s"', waveFile)));

No. of extracted frames = 86

Published with MATLAB® R2018a
